By GREE Canada

LOMO 20 Series

Function: Heat Pump
Capacity: 30000 BTU

THE PERFECT MATCH BETWEEN ECONOMY AND PERFORMANCE

The LOMO 20 Series is the aesthetically pleasing and affordable solution to your comfort needs, season after season. The minimalist design of the indoor unit blends unobtrusively into any décor and the customizable controls allow the homeowner to cool or heat the air exactly where they want it.

REDUCE YOUR HEATING COSTS
GREE offers a complete line of heat pumps that heat efficiently – even at low outdoor temperatures – keeping you warm all winter long, while saving you money on energy costs.



Key Features :

■ G10 Inverter technology
■ Precise airflow control
■ Low voltage start-up
■ Fins with anti-corrosion coating
■ Vertical and horizontal swing louver control
■ Multiple fan speed
■ Adjustable LED display
■ Washable dust filters
■ Heavy gauge steel cabinet
■ Eco-friendly R410A refrigerant
■ Remote control (included)
■ Wired thermostat (in option)




System Performance

Cooling Capacity

30,000 BTU/h (9,485 – 30,025)

Heating Capacity

28,400 BTU/h (9,997 – 32,994)

Power Input :

2,700 (600 – 3,900)

W

Power Input :

2,800 (650 – 4,000)

W

SEER 2 :

20.0

BTU/W*h

HSPF 2 :

8.5

BTU/W*h

EER 2 :

11.25

BTU/W*h

COP :

3.00

W/W

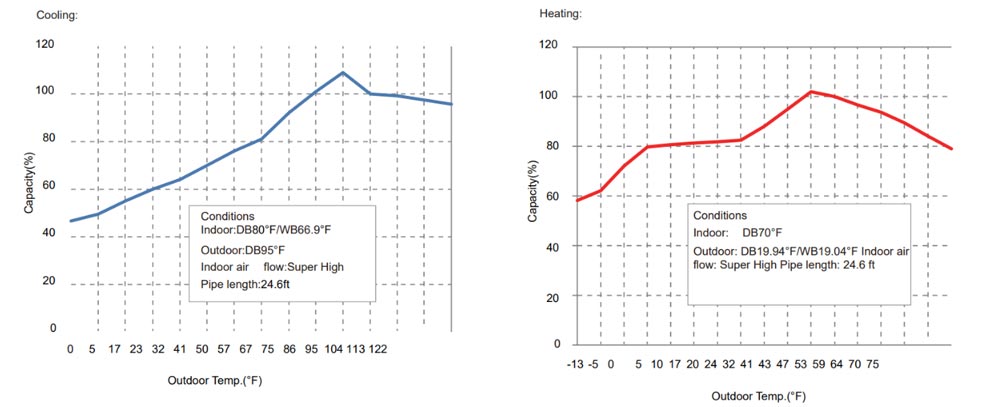

Performance Charts

Indoor Unit Specifications

Moisture Removal Capacity :

3.00 (6.34)

L/h (pt/h)

Airflow Volume :

1200 / 1050 / 900 / 700 (706 / 618 / 530 / 412)

m³/h (CFM)

Sound Pressure Level :

51 / 45 / 41 / 37

dB(A)

Dimensions :

1350 x 325 x 253 (53-3/16 x 12-13/16 x 10)

mm (in)

Weight (Net) :

19 (41.9)

kg (lb)

Weight (Gross) :

23.5 (51.8)

kg (lb)

Outdoor Unit Specifications

Ambient Temperature Range (Cooling) :

-15 to 46 (5 to 115)

C° (F°)

Ambient Temperature Range (Heating) :

-20 to 24 (-4 to 75)

C° (F°)

Sound Pressure Level :

62

dB(A)

Dimensions :

1003 x 790 x 427 (39-1/2 x 31-1/8 x 16-13/16)

mm (in)

Weight (Net) :

70 (154.4)

kg (lb)

Weight (Gross) :

75 (165.4)

kg (lb)
