By GREE Canada

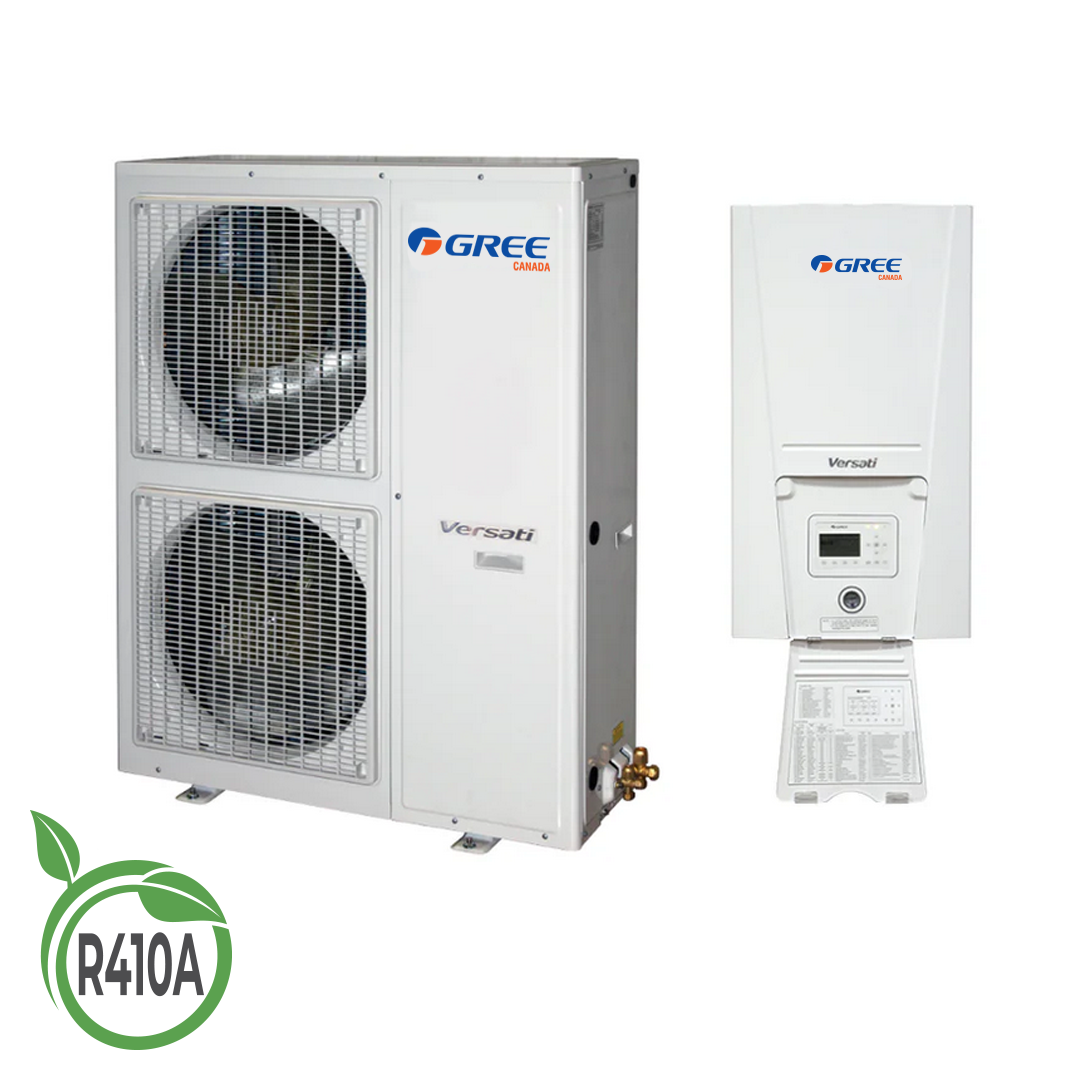

Versati IV Air-to-Water Monobloc

Capacity: 54500 BTU

THE ENERGY-EFFICIENT SOLUTION FOR WATER HEATING

The Versati IV monobloc water-heating heat pump is an all-in-one solution, making installation quick and easy.

  • HEATING FOR OUR CANADIAN CLIMATE
    Incorporating Inverter technology and GREE’s patented dual-stage Inverter compressor, the Versati IV air-to-water monobloc heat pump can produce heat at outdoor ambient temperatures as low as -25 °C.

  • VERSATILE APPLICATIONS
    The Versati IV is a totally flexible, high-efficiency system offering versatile applications for air conditioning, heating and domestic hot water production.

FEATURES

■ Side discharge condenser
■ Quiet design
■ Outlet water temperature up to 65 °C (150 °F)
■ Heating at outdoor ambient temperature : -25 °C (-13°F)
■ 5.8 kW electric auxiliary heater included
■ Internal circulation pump included
■ Wired controller included
■ Emergency mode
■ Dual-stage Inverter compressor
■ Heavy gauge steel cabinet

System Performance

Cooling Capacity

45,726 BTU/h (17,915 – 47,773)

Heating Capacity

54,598 BTU/h (23,204 – 64,835)

COP :

Up to 4.4

W/W

Indoor Unit Specifications

Outdoor Unit Specifications

Ambient Temperature Range (Cooling) :

-15 to 48 (5 to 118)

C° (F°)

Ambient Temperature Range (Heating) :

-25 to 35 (-13 to 95)

C° (F°)

Sound Pressure Level :

60

dB(A)

Dimensions :

1206 x 878 x 444 (47-1/2 x 34-9/16 x 17-1/2)

mm (in)

Weight (Net) :

148.8 (328.0)

kg (lb)

Weight (Gross) :

161.9 (357.0)

kg (lb)
