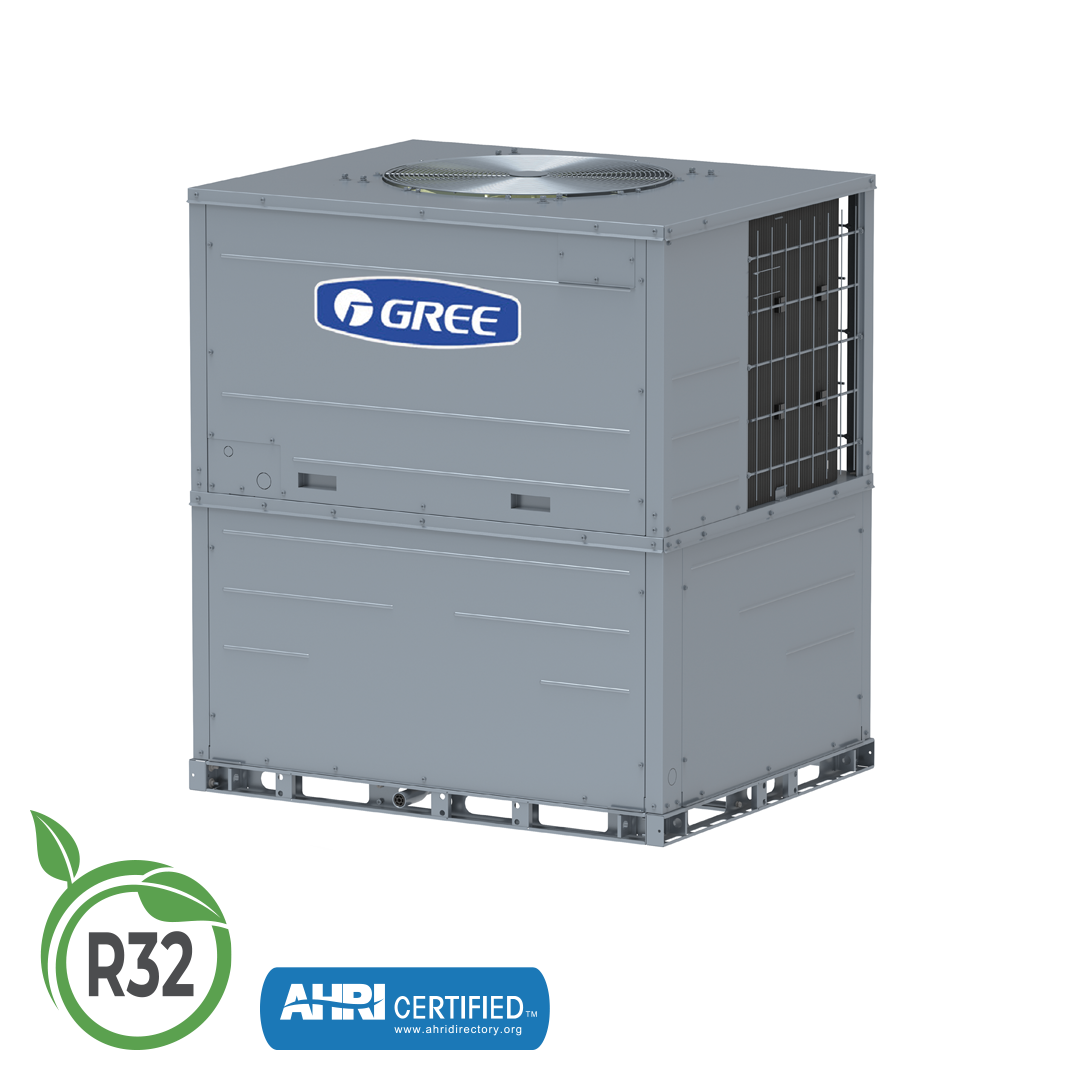

Rooftop R32

Function: Heat Pump
Capacity: 60000 BTU
GREE CanadaMini PTAC R32
Mini PTAC R32
UNPARALLELED HEATING ENERGY EFFICIENCY

The Ultra-Heat ROOFTOP R32 heat pump adopts two-stage, two-cylinder compression and hot gas injection technologies to achieve unprecedented heating performance at cold outside temperatures.

UNIVERSAL CONTROL CONNECTION
The GREE ROOFTOP R32 heat pump allows two methods of temperature control: two wire communication without electrodes with the included GREE controller, and the standard 24V connection. The communication distance between the controller and the heat pump can go up to 98.5 feet, so there’s no limit to how far you can control this high-efficiency heat pump.

Key Features :

■ Ultra Heat Technology
■ G20 Inverter Technology
■ Non-polarity Communication Design
■ Anti-corrosive and Dustproof Design
■ Multi-protection Design
■ Multi Parameter Throttling Control Design
■ Dead Wind Start-up Design
■ Emergency Operation Design
■ Centralized Control
■ Remote Control Function (gateway accessory required)
■ New R32 Refrigerant




System Performance

Cooling Capacity

56,000 BTU/h (14,000 – 58,800)

Heating Capacity

57,000 BTU/h (14,250 – 62,700)

Power Input :

5.0

W

Power Input :

4.91

W

SEER 2 :

18.0

BTU/W*h

HSPF 2 :

8.3

BTU/W*h

EER 2 :

11.2

BTU/W*h

COP 2 :

3.40

W/W

Outdoor Unit Specifications

Cooling Ambient Temperature Range :

-5 to 52 (23 to 125)

C° (F°)

Heating Ambient Temperature Range :

-30 to 24 (-22 to 75.2)

C° (F°)

Sound Pressure Level :

68

dB(A)

Dimensions :

1118 × 1251 × 1118 (44 × 49-1/4 × 44)

mm (in)

Net Weight :

285.0 (628.3)

kg (lb)

Gross Weight :

294.8 (650.0)

kg (lb)
