By GREE Canada

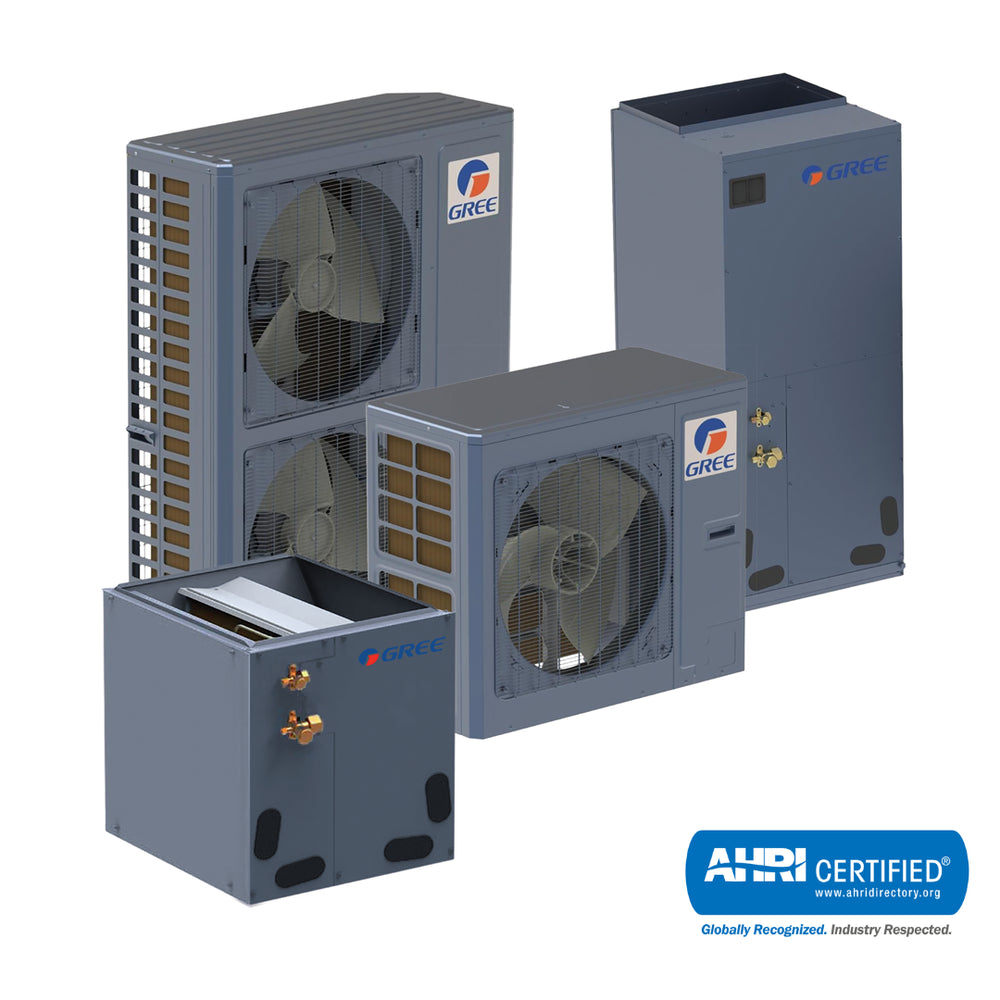

Unix Series

Function: Air Handler
Capacity: 24000 BTU

CURB CLIMATE CHANGE WITH ENERGY EFFICIENT HEATING

The challenge with heat pumps has long been their efficiency in very cold weather.
The Unix central heat pump uses state-of-the-art technology developed by GREE to
provide powerful heating capacity in outdoor temperatures as low as -30 °C. Perfect
for our harsh Canadian winters!

  • INSTALLATION FLEXIBILITY
    A) Install a complete GREE kit, or
    B) Retrofit with a third-party indoor unit, or with a furnace combined with a cased
    coil, to reduce labor and equipment costs.

  • STANDARD 24V COMMUNICATION
    The Unix series communication system is compatible with most standard 24V
    wired thermostats on the market.



System Performance

Cooling Capacity

24,000 BTU/h (12,000 – 24,000)

Heating Capacity

24,000 BTU/h (12,000 – 30,000)

Power Input :

1,920

W

Power Input :

1,670

W

SEER 2 :

17.0

BTU/W*h

HSPF 2 :

9.0

BTU/W*h

EER 2 :

12.0

BTU/W*h

COP :

4.20

W/W

Indoor Unit Specifications

Moisture Removal Capacity :

2.85 (6.03)

L/h (pt/h)

Airflow Volume :

1631 (960)

m³/h (CFM)

Sound Pressure Level :

45

dB(A)

Dimensions :

540 x 1224 x 540 (21-1/4 x 48-1/4 x 21-1/4)

mm (in)

Weight (Net) :

71 (156.5)

kg (lb)

Weight (Gross) :

77 (169.8)

kg (lb)

Outdoor Unit Specifications

Ambient Temperature Range (Cooling) :

-15 to 54 (5 to 129)

C° (F°)

Ambient Temperature Range (Heating) :

-30 to 24 (-22 to 75)

C° (F°)

Sound Pressure Level :

52 (45 – 56)

dB(A)

Dimensions :

820 x 940 x 460 (32-1/4 x 37 x 18-1/8)

mm (in)

Weight (Net) :

98.5 (217.2)

kg (lb)

Weight (Gross) :

109 (240.3)

kg (lb)
