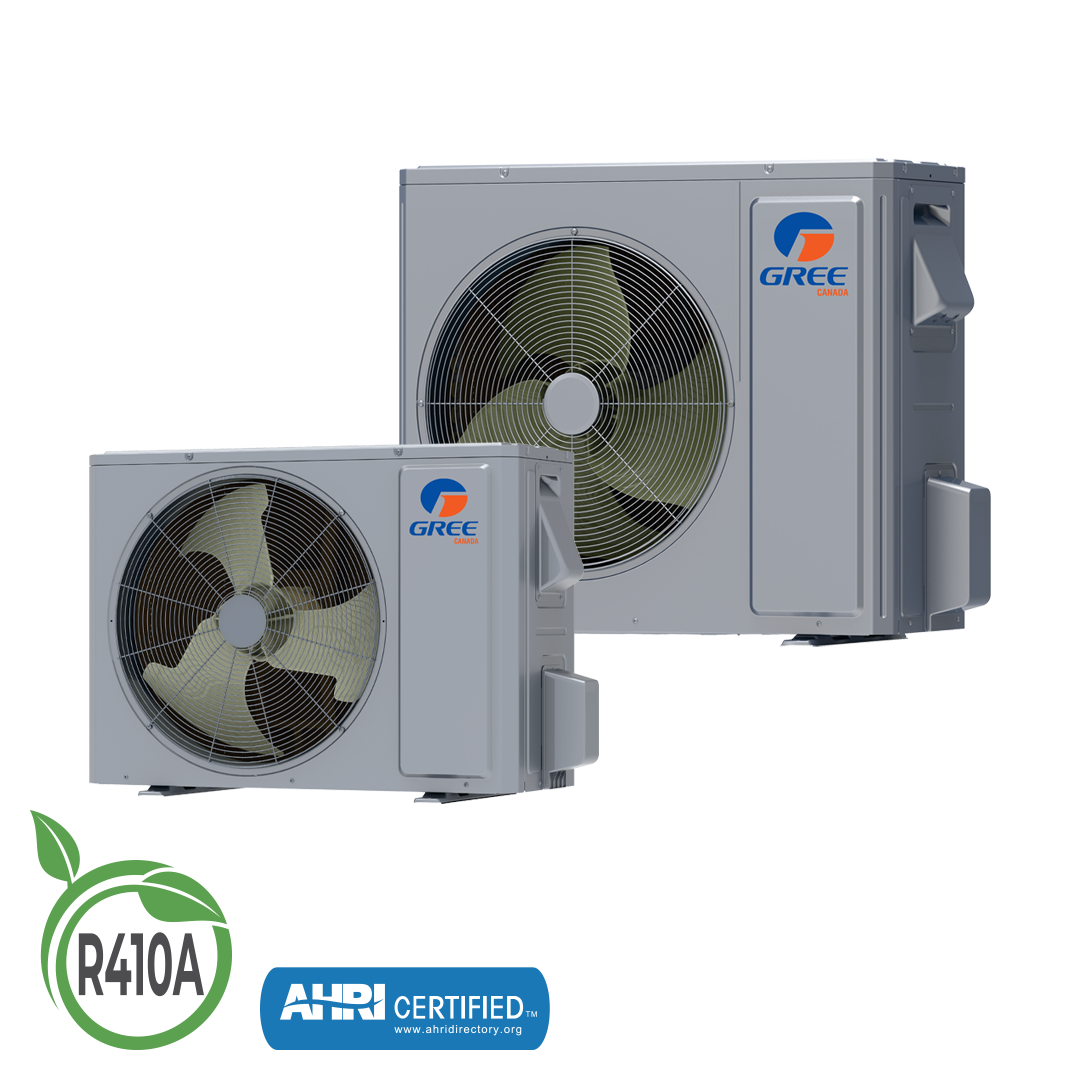

Unix ECO

Function: Air Handler
Capacity: 24000 BTU
SKU: GUD24AH2/D-D(U) / GUD24W2/D-D(U)
Tags:
Collections:
PERFORMANCE, COMFORT, AND UNBEATABLE VALUE

Choose the UNIX ECO for your home central air conditioning needs and enjoy unmatched comfort and flexibility. GREE’s Inverter technology allows the compressor and motor to automatically adjust to changes in room temperature, ensuring optimal performance and energy efficiency.

INSTALLATION FLEXIBILITY
A) Install a complete GREE kit, or
B) Retrofit with a third-party indoor unit, or with a furnace combined with a cased coil, to reduce labor and equipment costs.

STANDARD 24V COMMUNICATION
The UNIX series communication system is compatible with most standard 24 V wired thermostats on the market.

SMALL FOOTPRINT
Compact single-fan outdoor units save you valuable space while offering you great flexibility in installation, whether on the ground or on the wall.

Key Features :

■ DC Inverter Technology
■ Compatible with Downflow Applications
■ Compatible with 24 VAC Thermostats
■ Quiet Design
■ Possibility of Retrofit Installation
■ Two-cylinder, Two-stage Compressor
■ Coil (Outdoor) : Copper Tube and Aluminum Fins with Anti-corrosion Coating (Gold Fins / 1500-hour Salt-water Spray)
■ Coil (Indoor) : Copper Tube and Aluminum Fins with Anti-corrosion Coating (Blue Fins / 500-hour Salt-water Spray)
■ Environmentally-friendly R410A Refrigerant



Sales Brochure - French
Sales Brochure - English

System Performance

Cooling Capacity

23,000 (4,600 – 25,300)

Heating Capacity

23,000 (4,600 – 25,300)

Power Input :

2,330

W

Power Input :

1,480

W

SEER 2 :

15.5

BTU/W*h

HSPF 2 :

7.8

BTU/W*h

EER 2 :

10.5

BTU/W*h

COP 2 :

3.08

W/W

Indoor Unit Specifications

Moisture Removal Capacity :

2.50 (5.28)

L/h (pt/h)

Airflow Volume :

1360 (800)

m³/h (CFM)

Sound Pressure Level :

47

dB(A)

Dimensions :

460 x 1105 x 540 (18-7/64 43-1/2 21-17/64)

mm (in)

Net Weight :

57.0 (125.7)

kg (lb)

Gross Weight :

61.0 (134.5)

kg (lb)

Outdoor Unit Specifications

Cooling Ambient Temperature Range :

-15 to 48 (5 to 118.4)

C° (F°)

Heating Ambient Temperature Range :

-15 to 24 (5 to 75)

C° (F°)

Sound Pressure Level :

56

dB(A)

Dimensions :

889 x 658 x 340 (35 x 25-29/32 x 13-25/64)

mm (in)

Net Weight :

45.0 (99.23)

kg (lb)

Gross Weight :

49.0 (108.0)

kg (lb)
